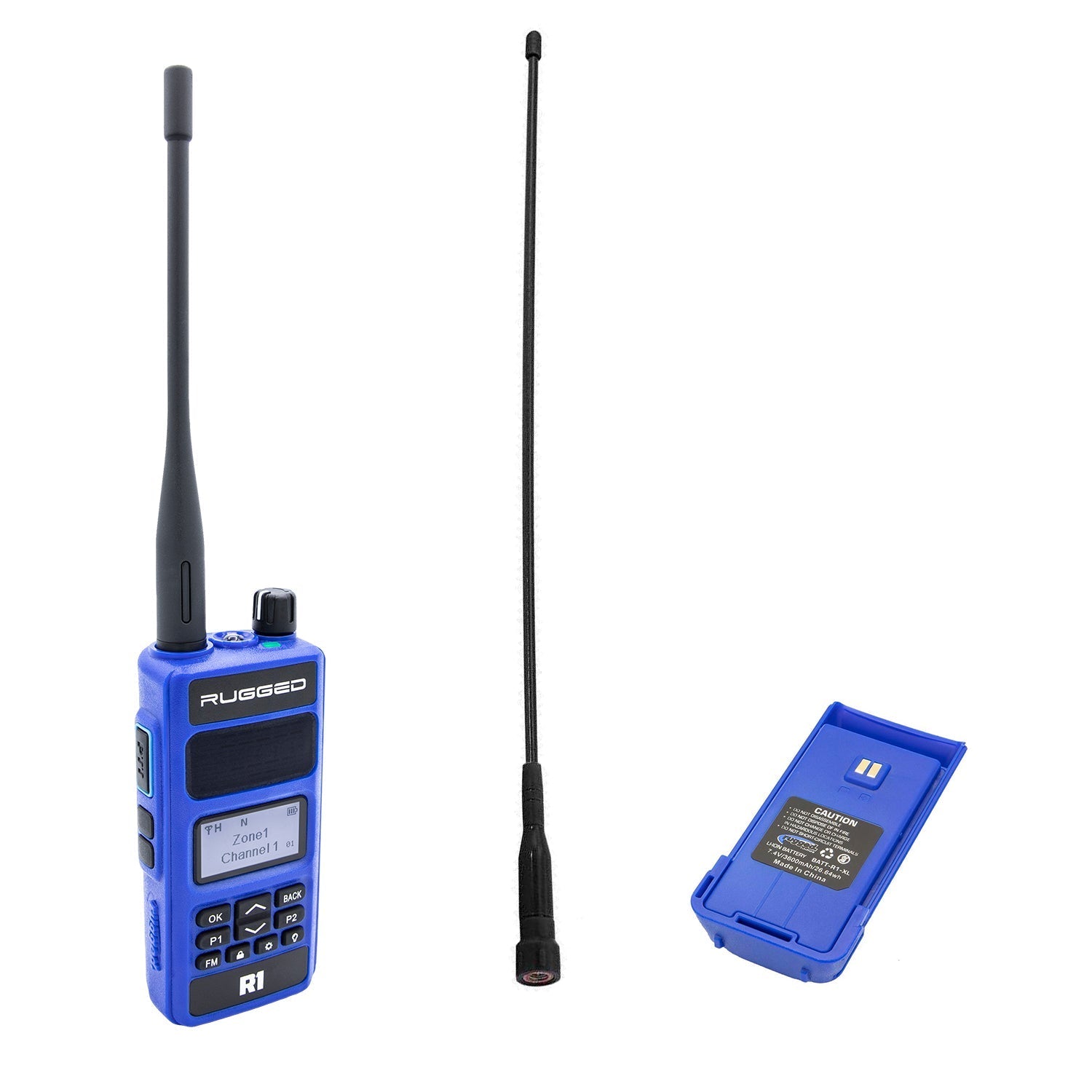

R1 Bundle with Long Range Antenna and High Capacity Battery

R1-BUNDLE
$200.00 $170.00

Go Further with the R1 Bundle; featuring the R1 Handheld, Long Range Antenna, and High Capacity Battery! From the races to the job-site, the all-new Rugged R1 has the features to get the job done. Feature-packed, with an easy-to-use interface - The R1 is the workhorse that does it all.

KEY FEATURES:

  • Includes radio, long range antenna, & high capacity battery!
  • Easy-to-Use Keypad and Interface
  • Customizable Channel Preset Buttons
  • Works with most business radios - including V3*

Compatibility: This radio works with all VHF/UHF business band radios operating on the same frequencies. Radio models include, but are not limited to: RDM-DB, M1, RDH-X, R1, V3, RM60, RH5R, RDH16, as well as Icom, Motorola, Kenwood business band radios, and more.

Make sure you are buying the right radio.
CLICK HERE

R1 Bundle with Long Range Antenna and High Capacity Battery

Go Further with the R1 Bundle; featuring the R1 Handheld, Long Range Antenna, and High Capacity Battery! Increase team efficiency with the perfectly-sized Rugged R1. Designed and tooled from the ground up to be a versatile solution for Work, Race, or Play - the Rugged R1 will instantly become your go-to radio.

This next-generation Rugged handheld is a workhorse! Go Further with a powerful 5 Watt transmitter, optimized receiver, and the versatility of DMR / analog cross-compatibility. DMR Digital operation allows you to take advantage of the latest technology, while Dual Band functionality lets you talk to race radios on both VHF and UHF frequencies - including our popular V3!

Always go back to your home channels with customizable channel presets. Never lose power with the included charge-on-the-go USB cable, and light the way with the R1's built-in safety flashlight. Click here to view the user guide.

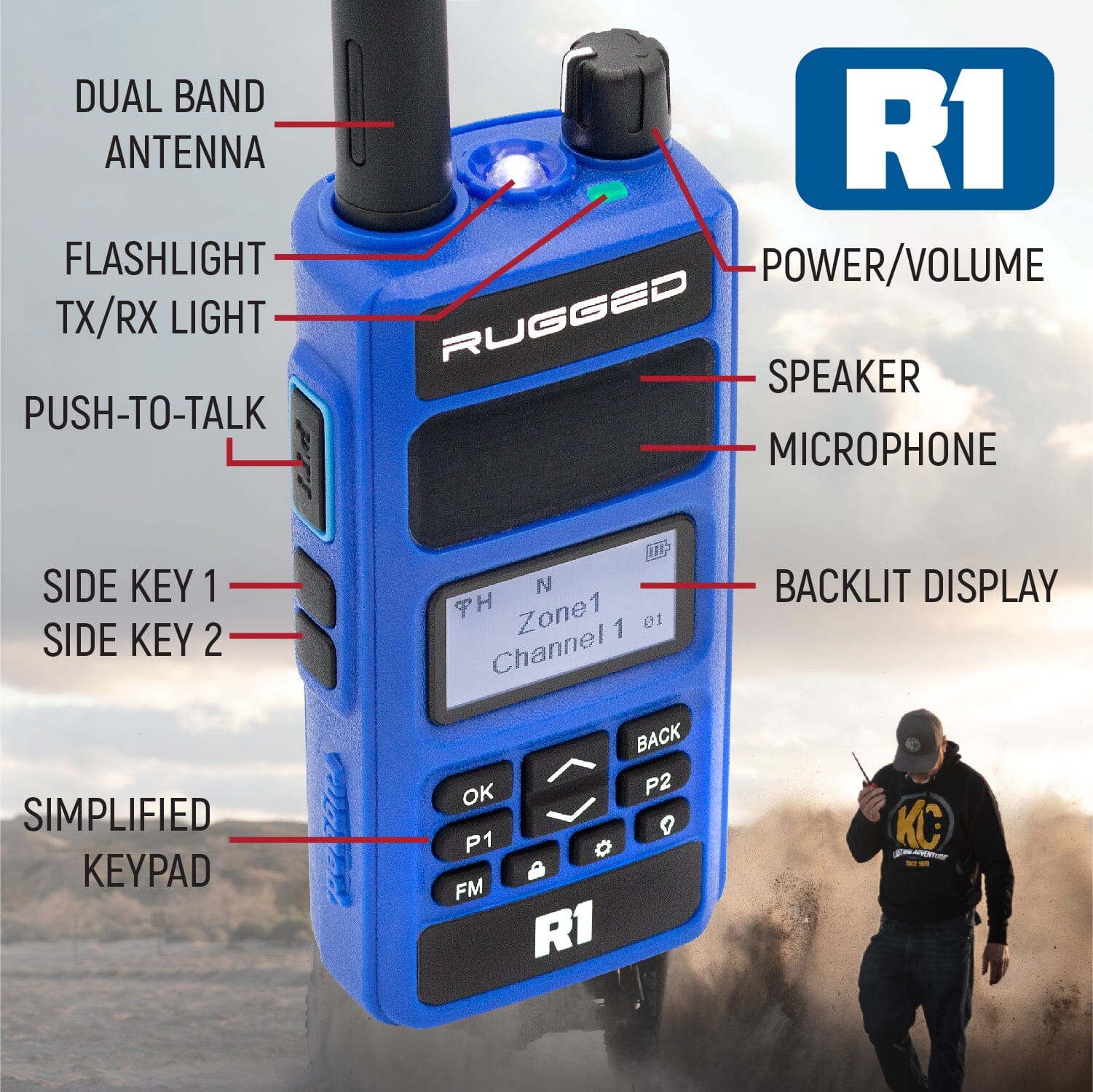

Features:

  • *Works with all business analog radios and DMR Digital
  • Versatile Dual Band VHF/UHF
  • Crystal-clear digital DMR
  • Large easy-to-read LED Display

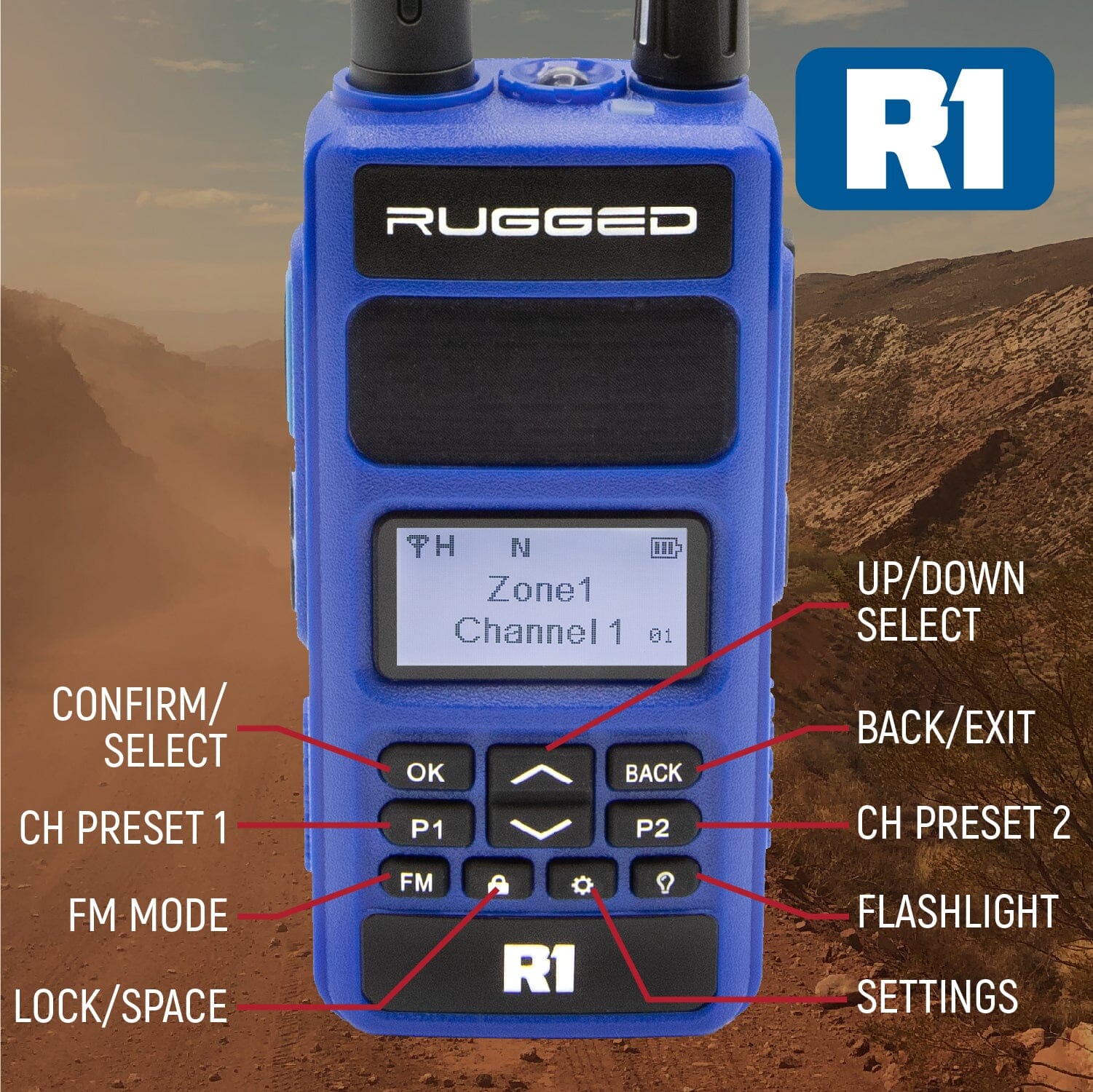

  • Easy-to-use, Intuitive Keypad and Interface
  • Text Messaging on digital channels
  • Dual monitor (listen to two channels at once)
  • Performance-tuned antenna

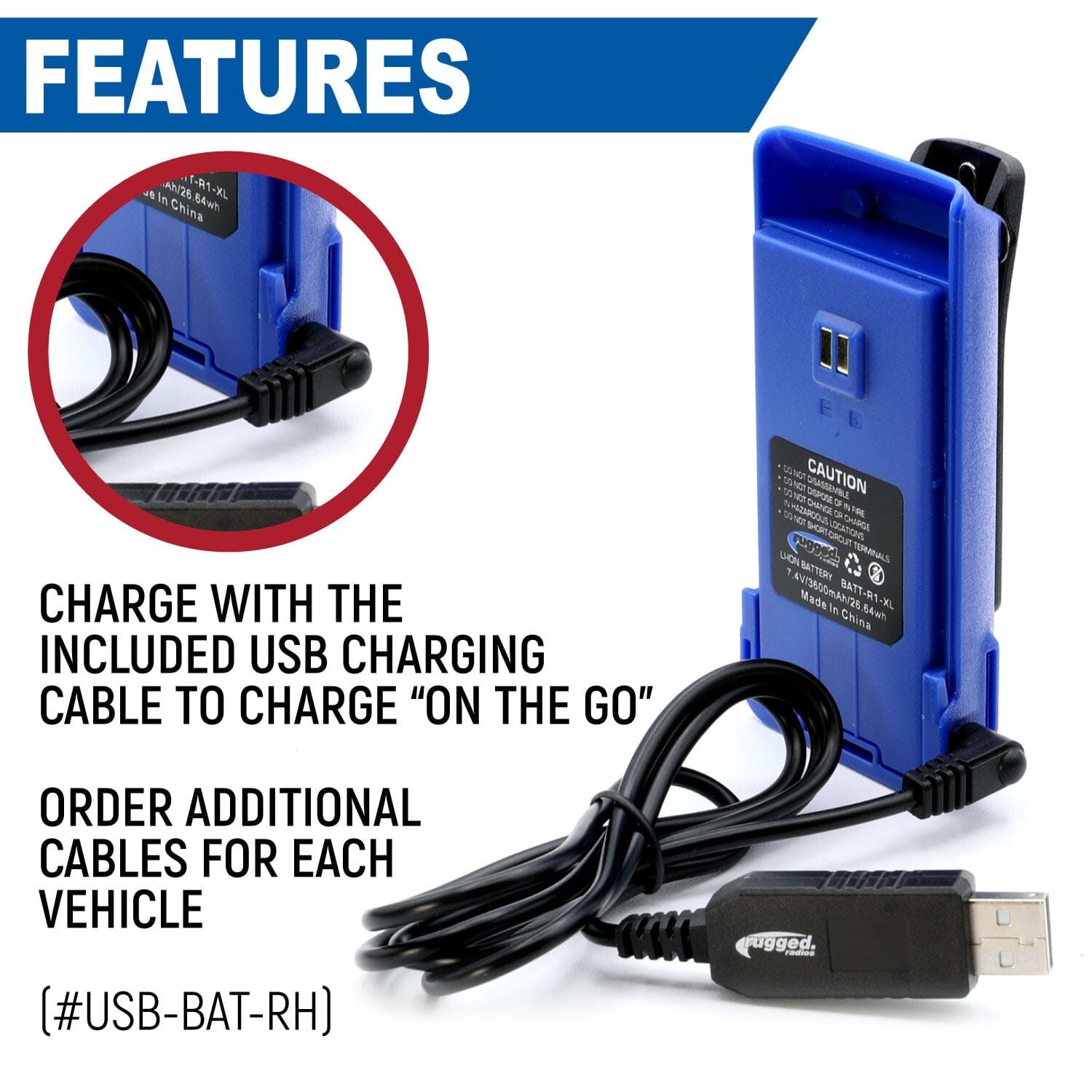

  • Charge-on-the-go USB cable included
  • Rechargeable Li-ion battery
  • Powerful 5-Watt transmitter

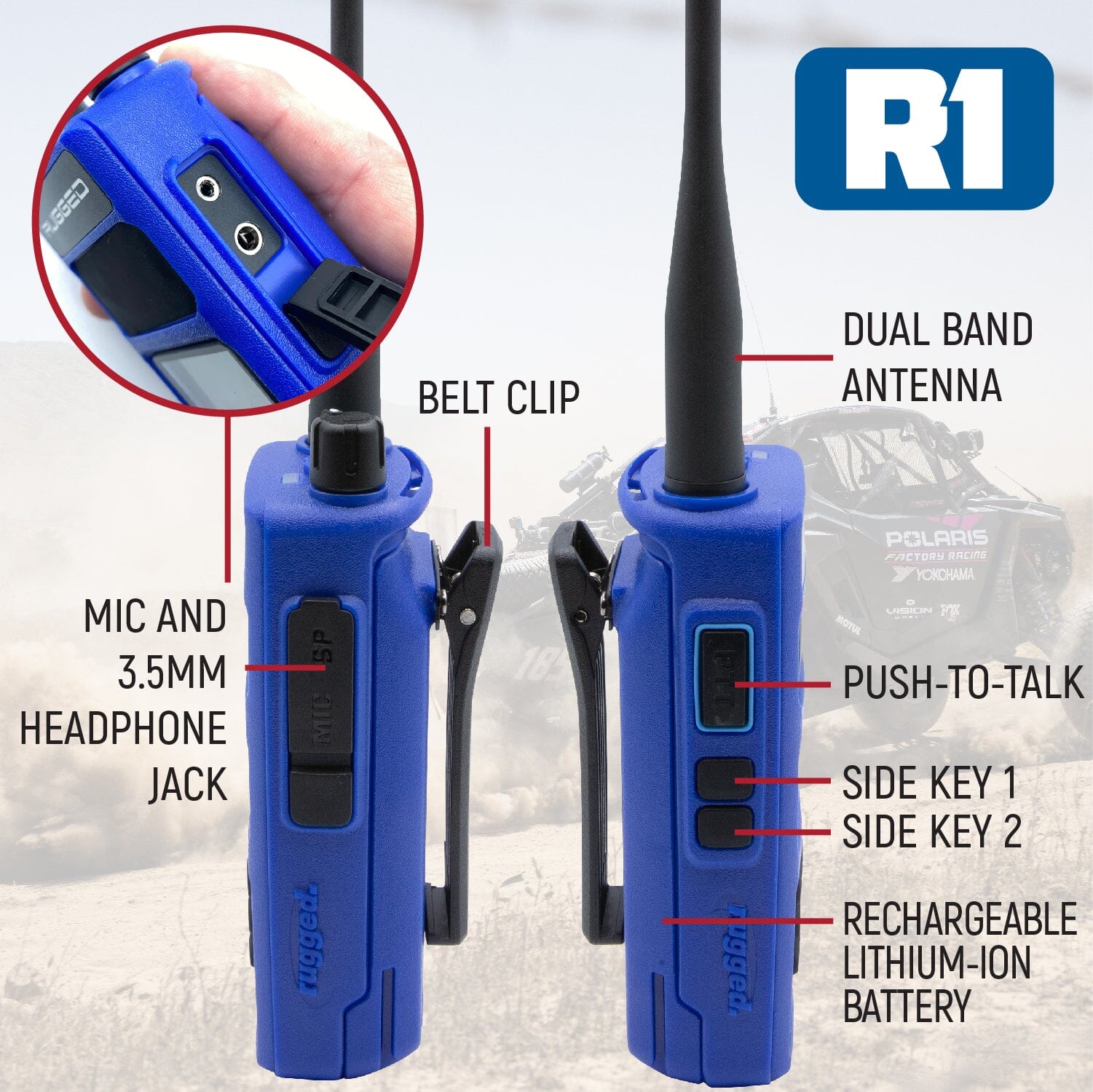

  • Works with 2-Pin accessories

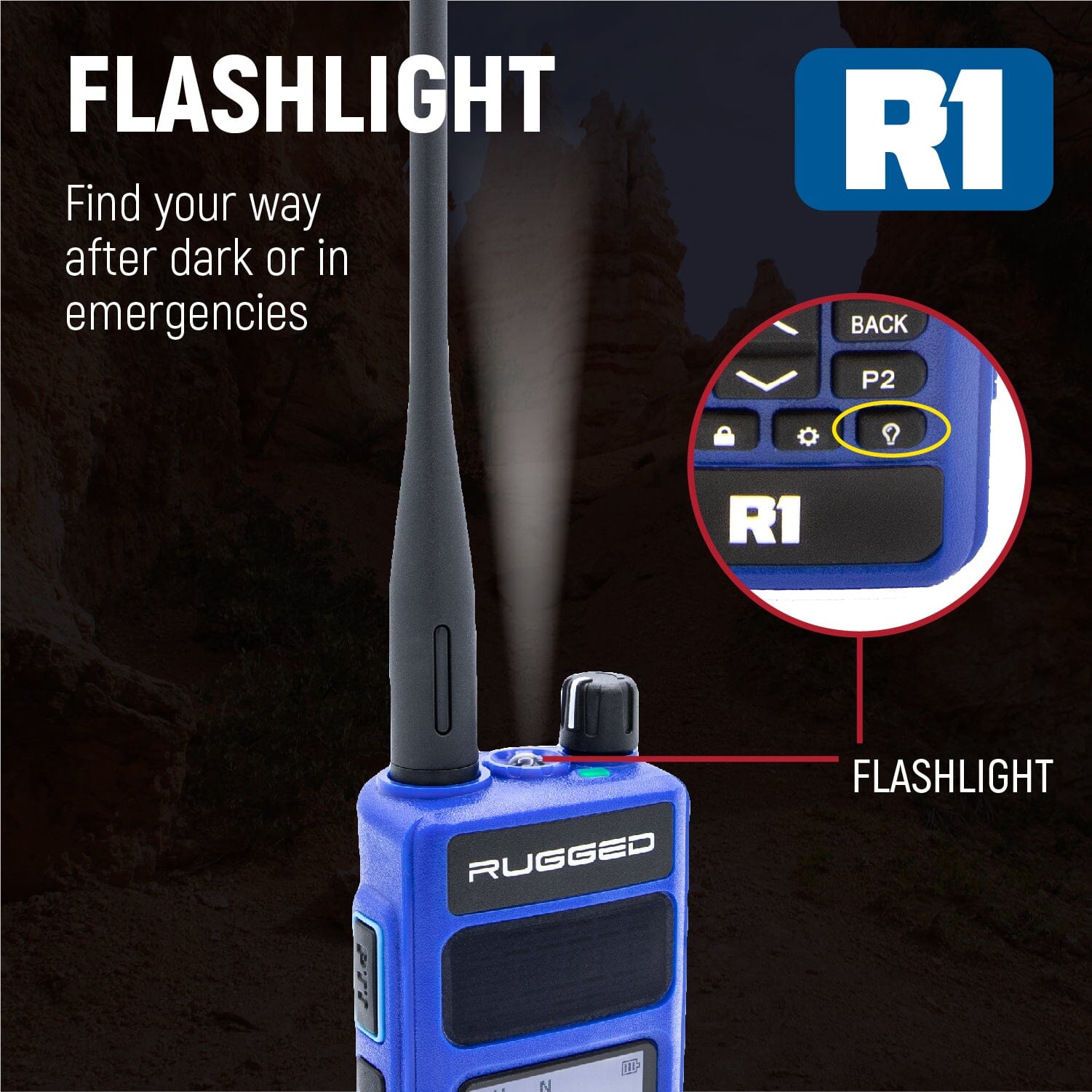

  • Built-in safety flashlight
  • 1 Touch FM Radio
  • Lockable controls
  • 1,024 Channel & 250 Zone capacity

Includes:

  • R1 handheld radio

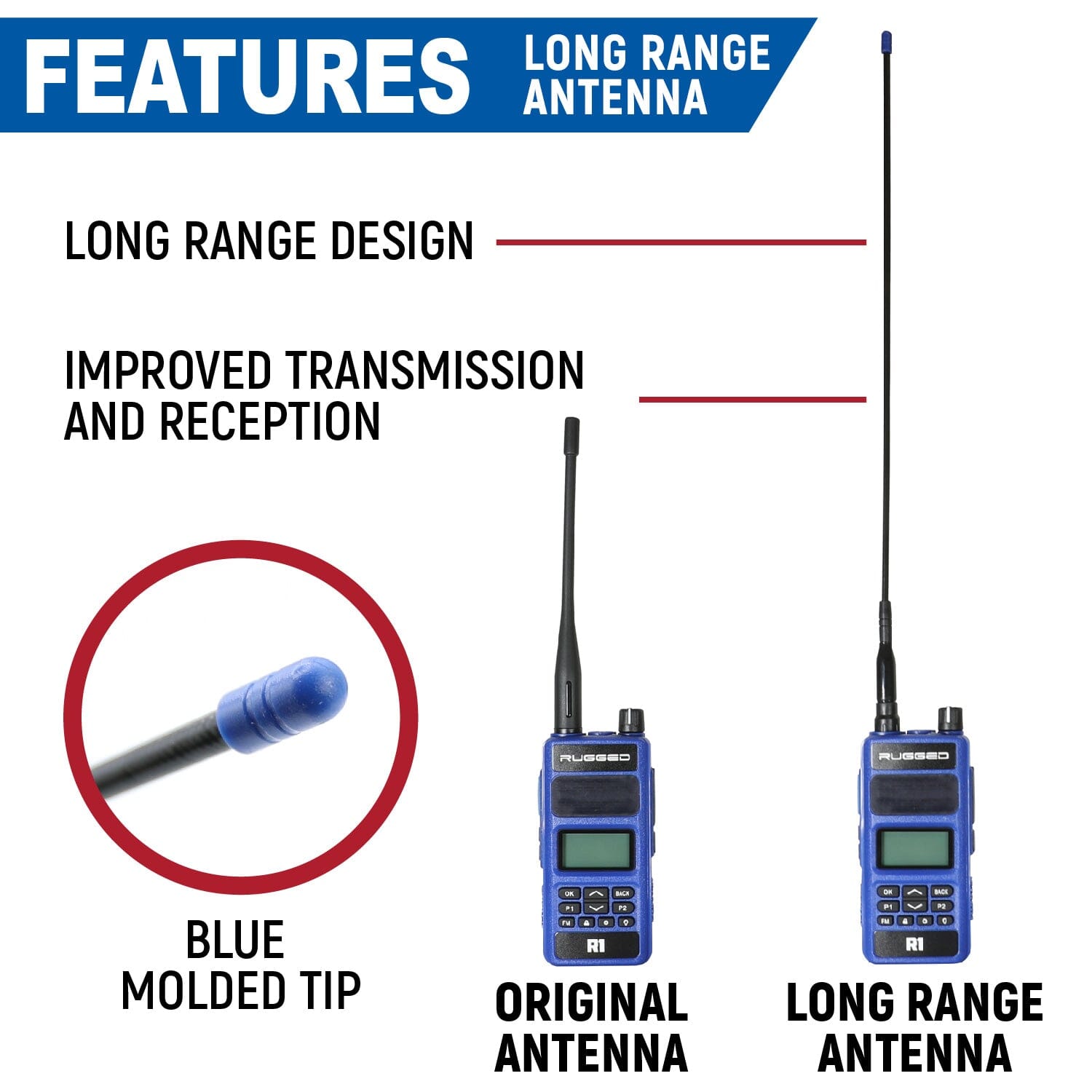

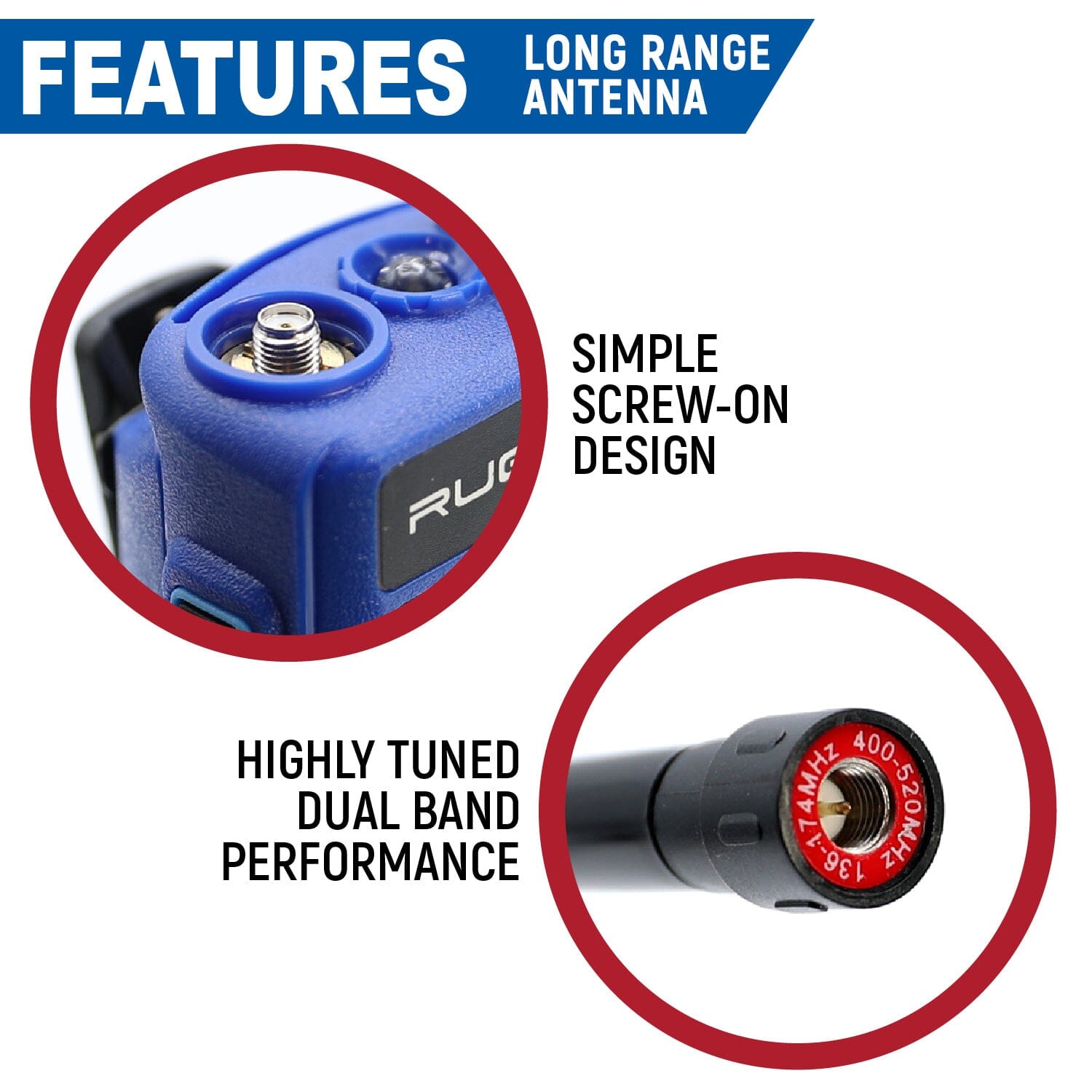

  • Long range antenna

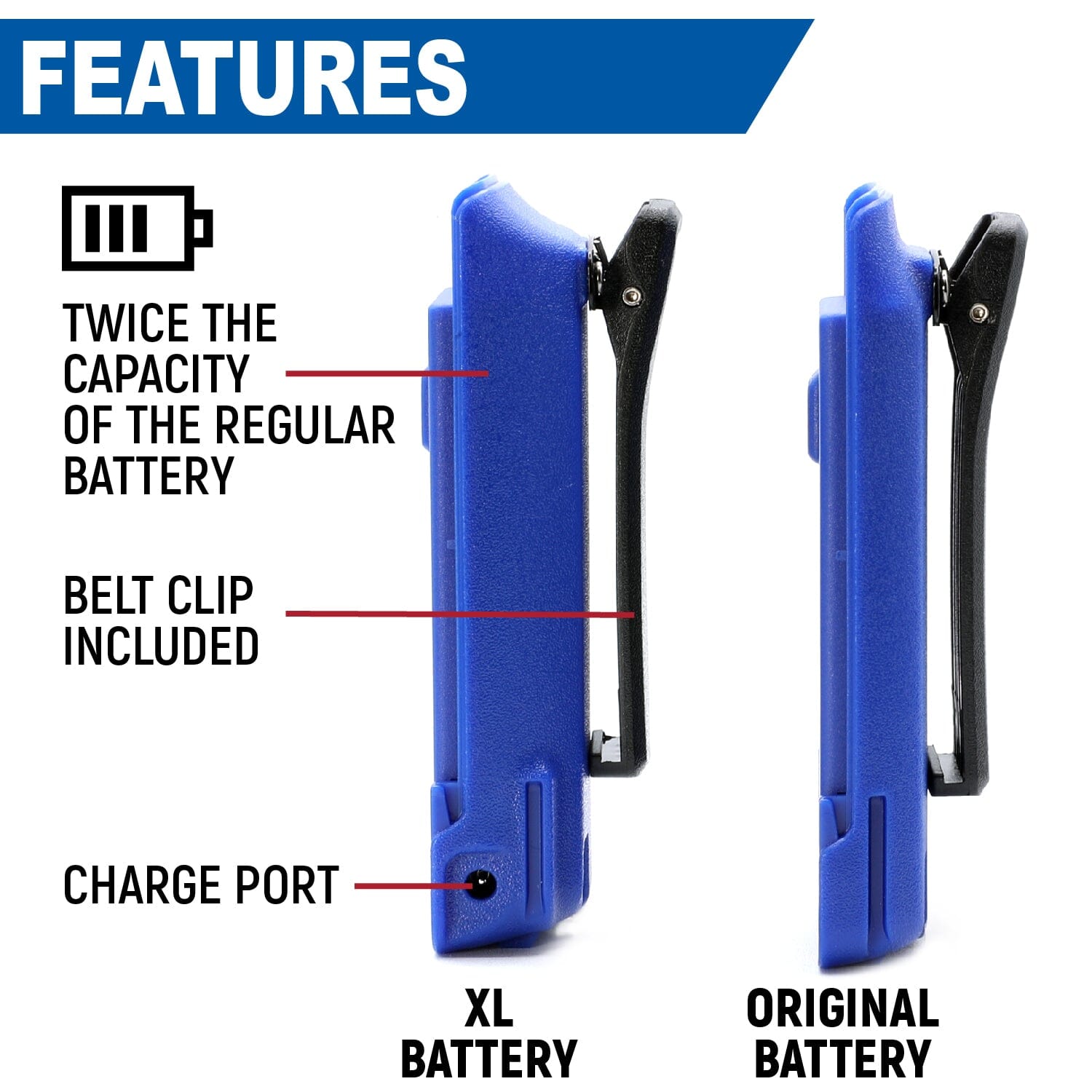

  • High capacity battery

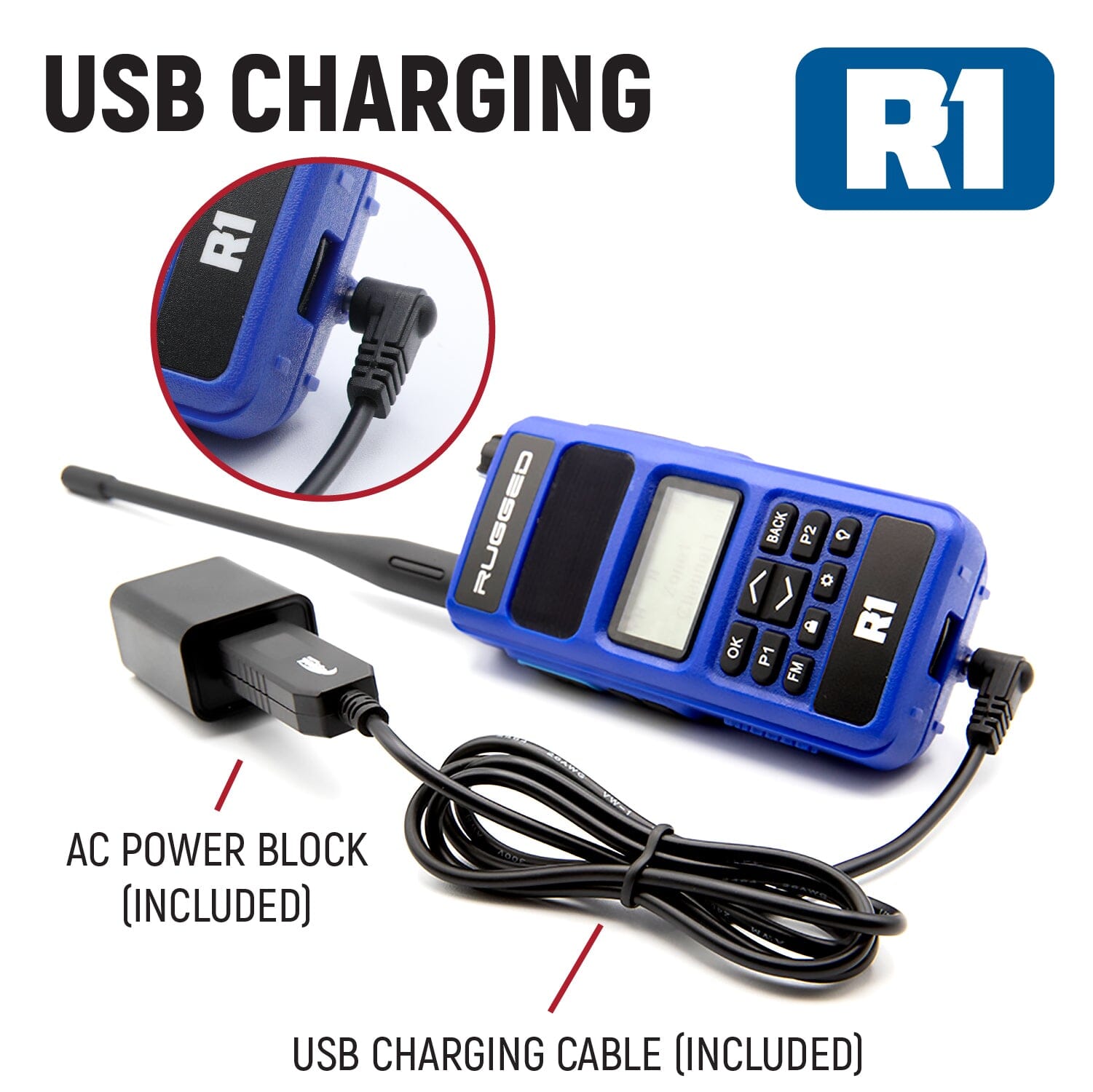

  • USB charging cable / power adapter
  • Belt clip

The R1 handheld radio is a lightweight, portable, digital/analog handheld radio. Featuring powerful industrial business band frequencies, the R1 is ready to help you Go Further!

    Compatibility: This radio works with all VHF/UHF business band radios operating on the same frequencies, as well as digital radios using the DMR platform. Radio models include, but are not limited to: R1, RDM-DB, M1, RDH-X, V3, RM60, RH5R, RDH16, as well as Icom, Motorola, Kenwood business band radios, and more.

    Business License is required. Click here to learn more.

    Read More
    Read Less

    General

    Frequency Range:

    136-174MHz (VHF)

    400-470MHz (UHF)

    Channel Capacity: 1024

    Frequency Stability: ± 1ppm

    Operating Temperature: -20ºC ~ + 70ºC

    Voltage: 7.4V DC

    Weight: 242g (battery and antenna included)

    Dimension (H x W x D): 120 x 60 x 35mm



    Transmitter

    Power (High): 5W

    Power (Low): 1W

    Transmit Current (Analog): ≤ 1.6A

    Transmit Current (Digital): ≤ 0.9A

    Standby Current: 0.15A

    FM Modulation Mode:

    11K0F3E @12.5KHz

    14K0F3E @20KHz

    16K0F3E @25KHz

    4FSK Digital Mode:

    12.5KHz Data Only: 7K60FXD

    12.5KHz Data & Voice: 7K60FXW

    Modulation Distortion: <5%

    Hum & Noise:

    ≥ 45dB @25KHz

    ≥ 40 dB @12.5KHz

    Adjacent Channel Power:

    ≤ -60dB @12.5KHz

    Audio Response: +1 ~ -3dB

    Antenna Port Spurious:

    9KHz to 1GHz: ≤ -36dBm

    1GHz to 12.75 GHz: ≤ -30dBm

    Digital Protocol: DMR / ETSI-TS102 361-1, -2, -3



    Receiver

    Analog Sensitivity: 0.2μV @12dB SINAD

    Digital Sensitivity: 0.25μV (BER* 5%)

    Intermodulation Rejection: 60-62dB

    Sensitivity: 12dB @ -122dB

    Adjacent Channel Selectivity: ≤ -60dB @12.5KHz

    Co-channel Rejection: ≥ 65dB

    Spurious Response: ≥ 70dB

    Audio Response: +1 ~ -3dB

    Rated Audio Distortion: <5%

    Audio Power: 1W

    Modulation Noise:

    ≥ 45dB @25KHz

    ≥ 40dB @12.5KHz


     *BER = Bit Error Rate
