Radio Kit Lite - GMR45 GMRS Band Mobile Radio with Stealth Antenna

Outline star
Outline star
Outline star
Outline star
Outline star
Filled star
Filled star
Filled star
Filled star
Filled star
(4)
RKL-GMR45
$369.00 $319.00



Go Further with our powerful, industry leading 45-watt GMRS radio kit featuring a low profile Stealth Antenna. Superior wattage provides superior power and range, giving you the ability to transmit long-distances when it matters.

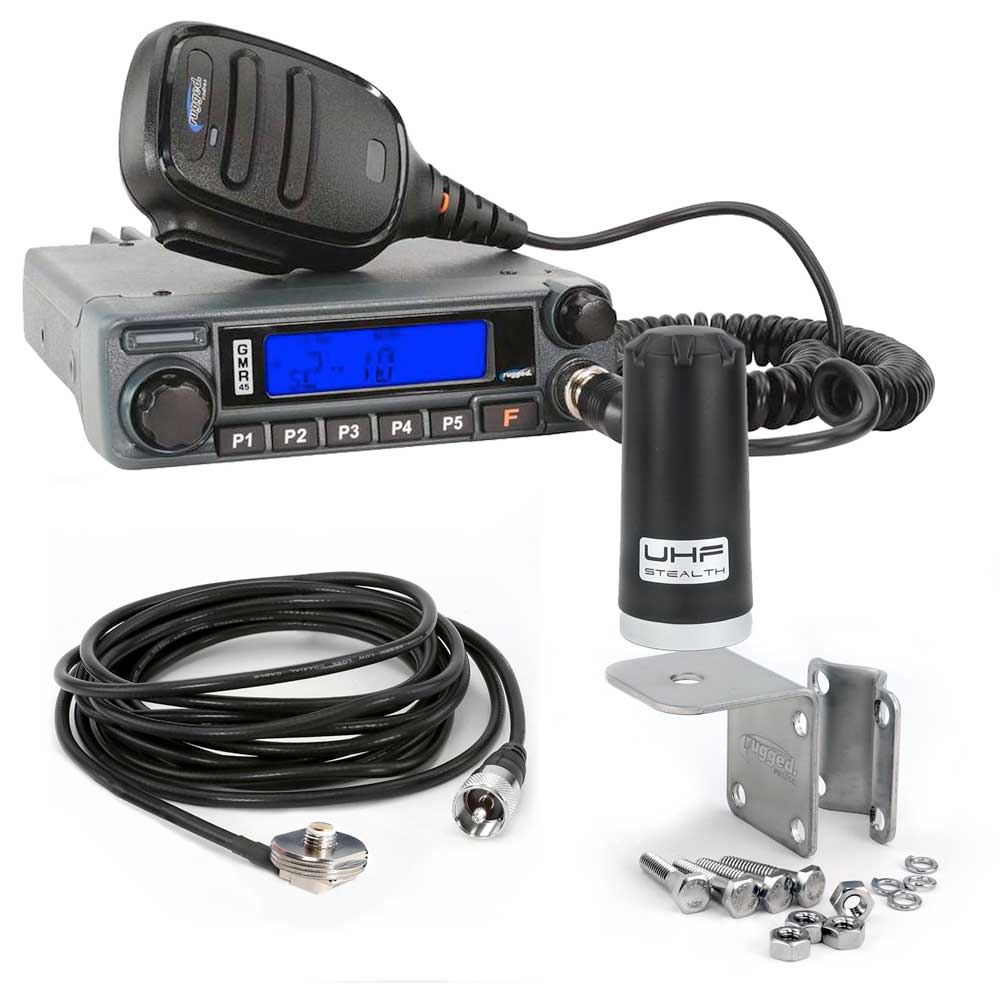

Kit Features:

  • GMRS 45-watt radio
  • UHF Stealth Antenna
  • Antenna coax cable
  • 3/8" bar mount antenna bracket
  • Features multiple pre-programmed channels, 8 repeater channels and 15 GMRS channels

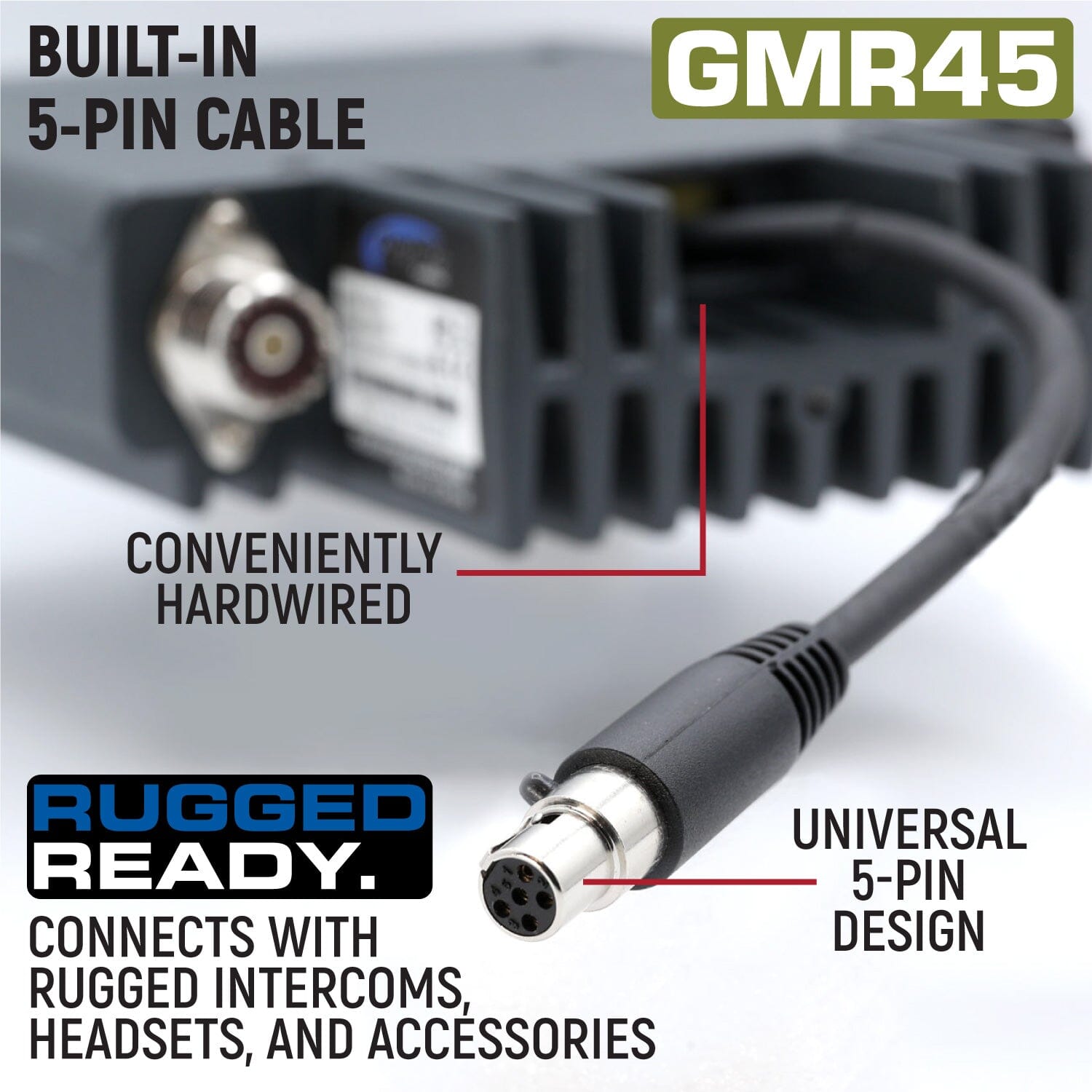

Easily connect to intercom, headset, or any 5-pin accessory with the built-in Rugged Ready pigtail cable!

Loaded with channels and features, this GMR45 kit includes everything you need to start talking!


Compatibility:

This radio works with all GMRS/FRS radios operating on the same frequencies, including but not limited to GMR45, GMR25, GMR2, and more.

Radio Dimensions: 5.5"W x 7"D x 1.5"H

GMRS License is required and easy to get: Click here.

User Manual: Click Here

Note: This Non Ground Plane Stealth antenna was designed for applications where a metal ground plane (such as a steel or aluminum) is not available. This design makes it perfect for mounting on a roll bar, fabricated tab, and other similar mounts. It will also work well on non-metallic roofs such as plastic or fiberglass. NOT intended for ground plane applications such as a steel or aluminum roof.

Read More
Read Less

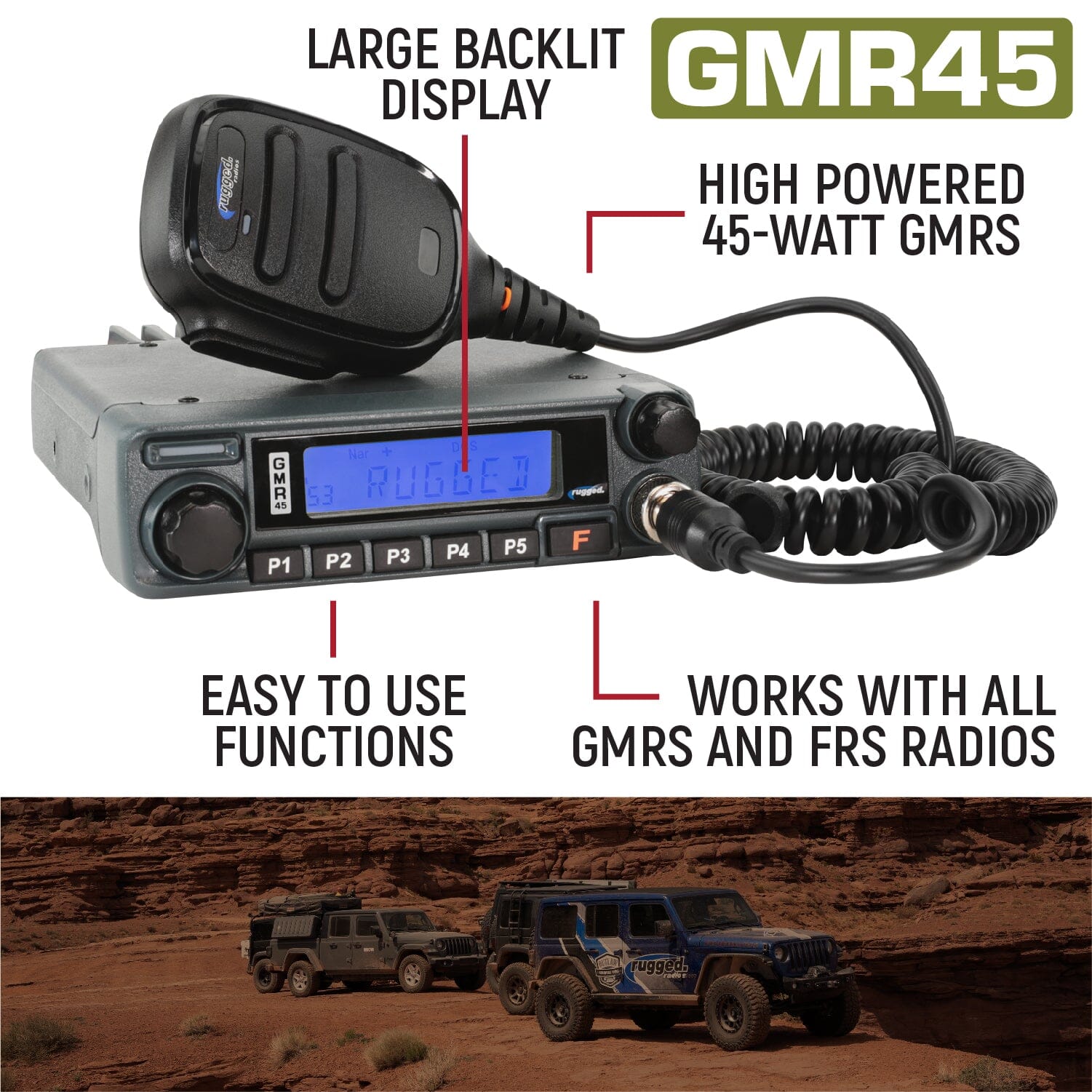

• GMR45 Mobile Radio

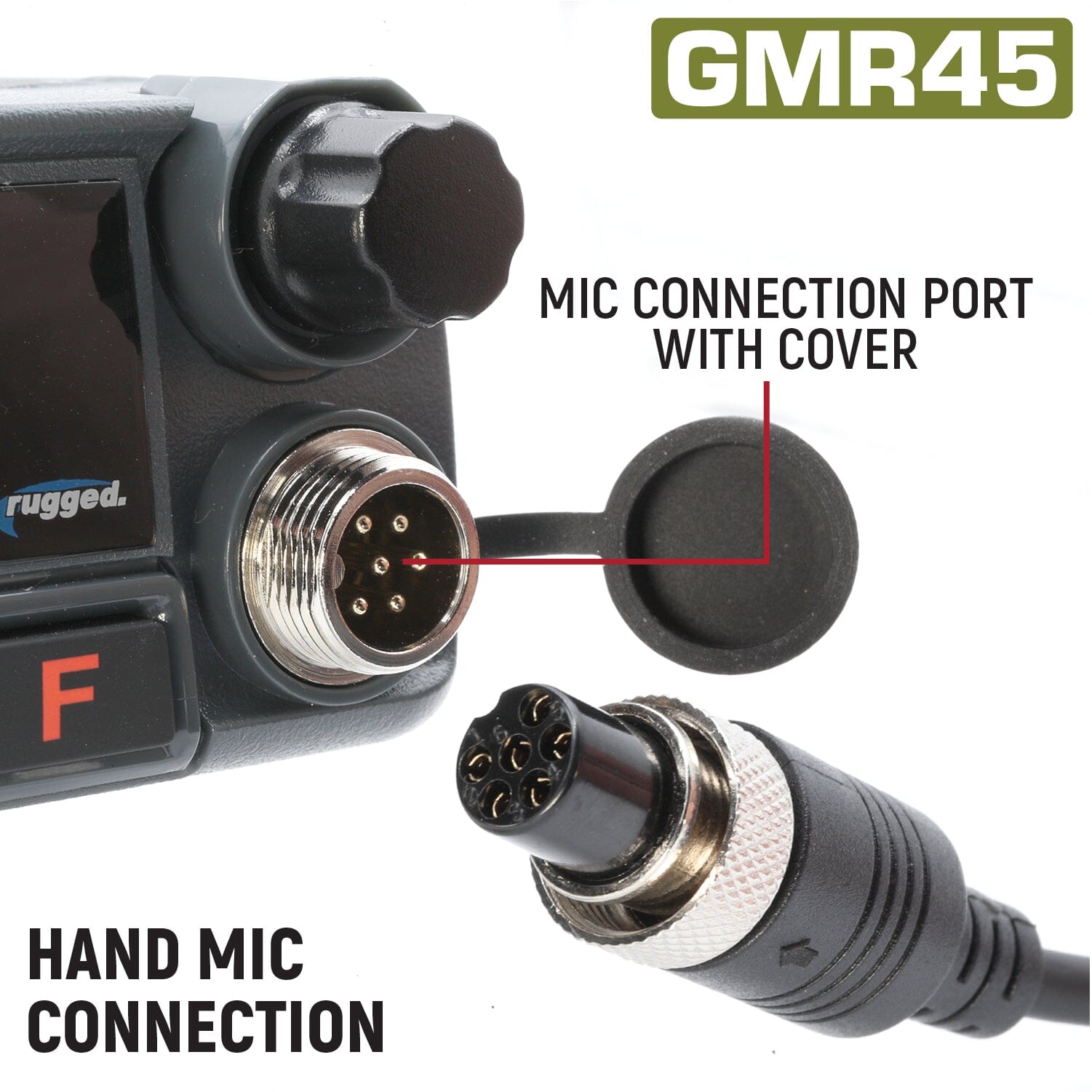

• Hand mic with Scosche Magic Mount
• 3/8" bar mount antenna bracket
• UHF Stealth Antenna
• 15' antenna coax cable with 3/8" NMO mount

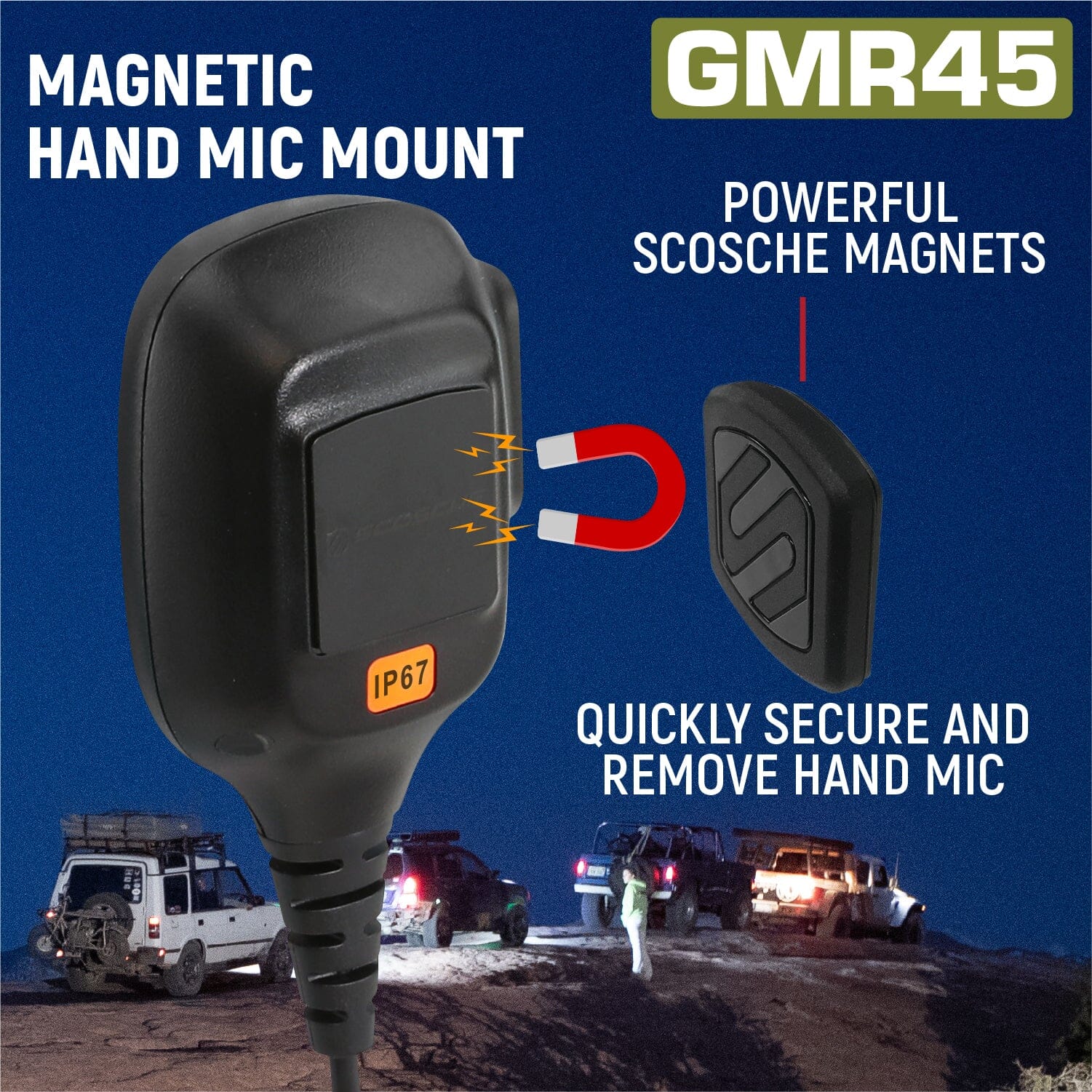

• Scosche Magnetic hand mic hanger

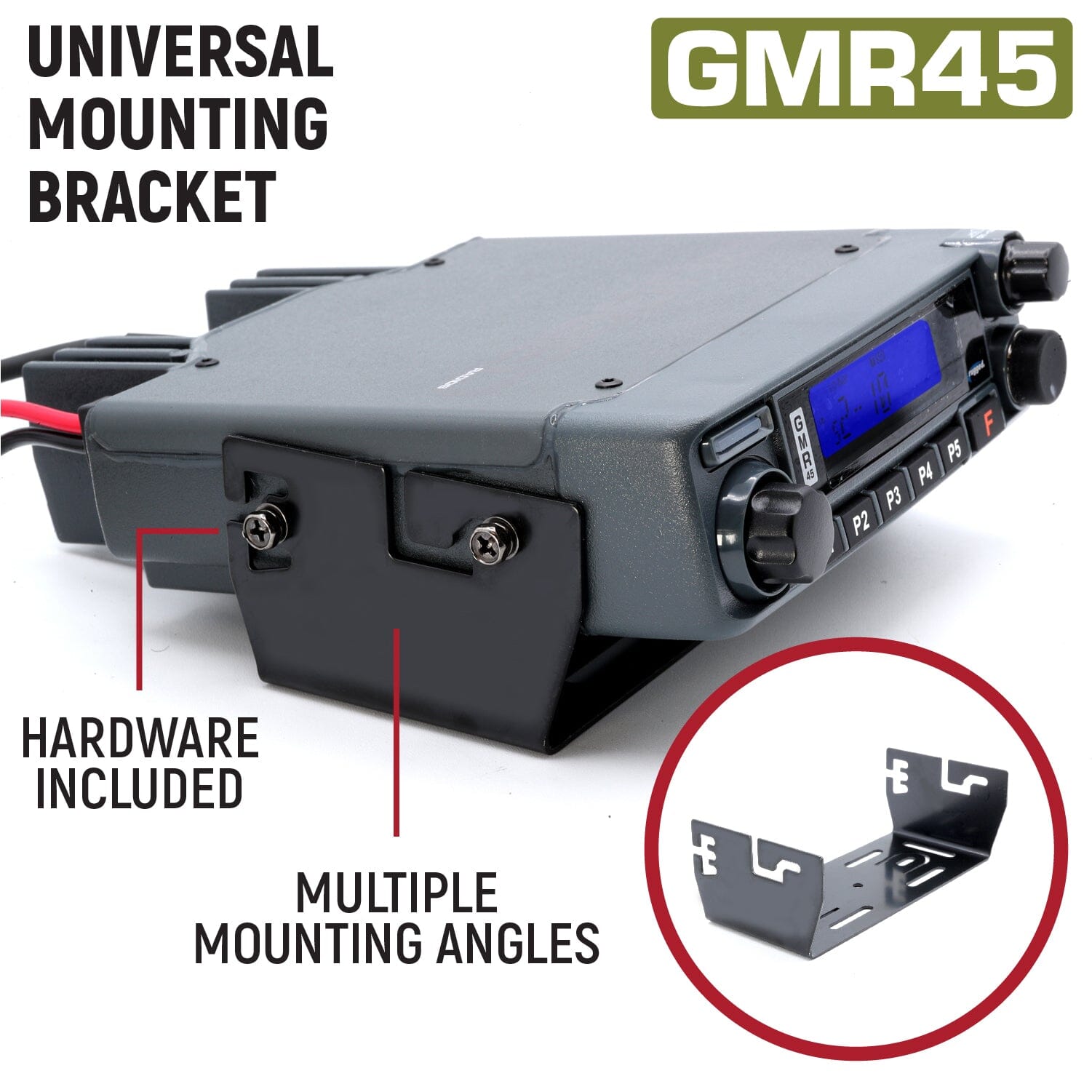

• Universal mounting bracket and hardware

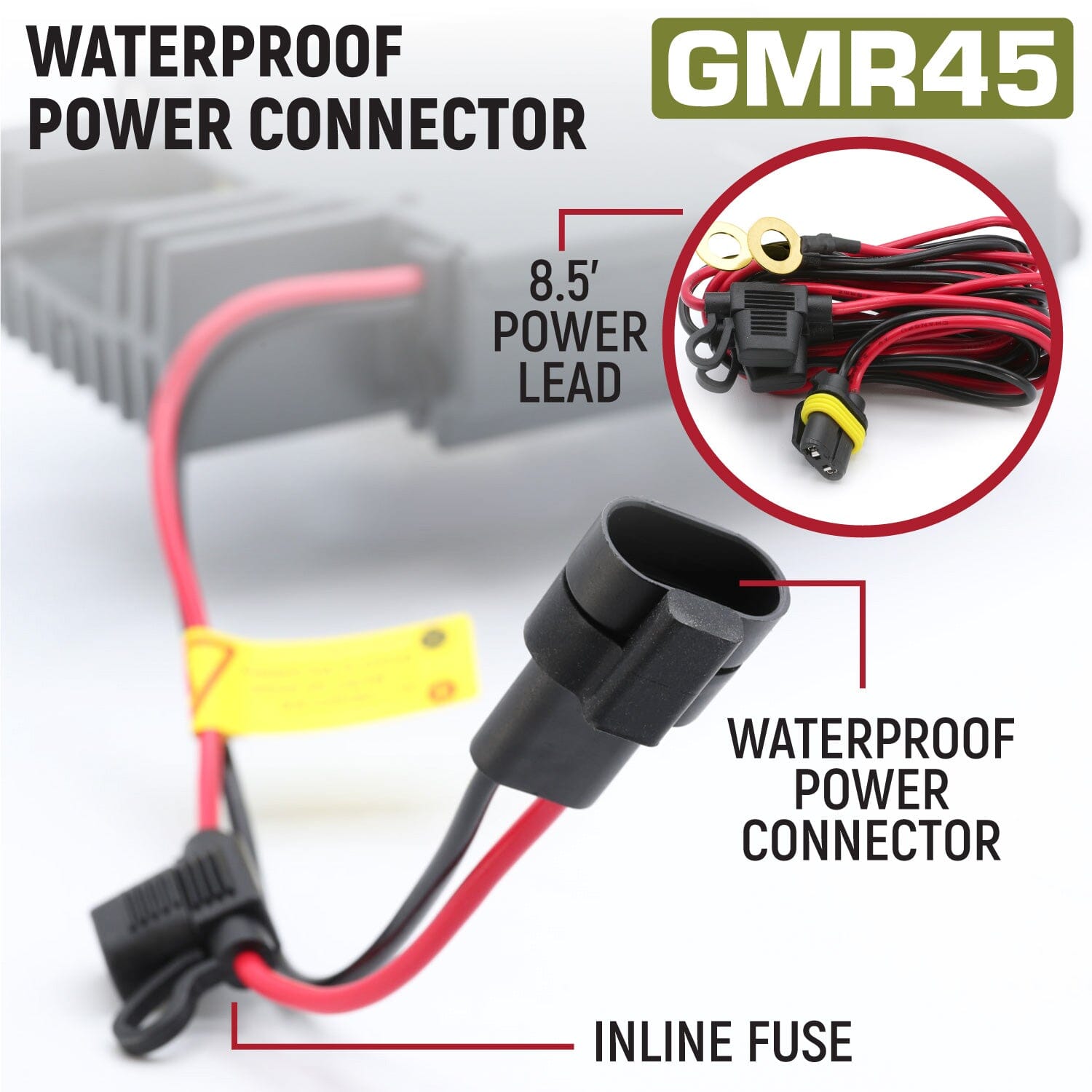

• Power cable with fuse

General

Frequency Range: 462-467MHz

Channel Capacity: 23

Channel Spacing: 12.5KHz

Frequency Stability: 2.5ppm

Operating Temperature: -10ºC~ + 60ºC

Operating Voltage: 13.6V DC ±20%

Dimension (HxWxD): 142 x 180 x 42mm



Transmitter

Radio Frequency (RF) Power: 45W/5W

Frequency Modulation: 1KφF3E

Antenna Impedance: 50Ω

Modulation Limiting: ±2.5KHz

Modulation Distortion: < 5%

Radiated Spurious Emission: ≥ 60dB

FM Hum & Noise: ≥ 35dB

Adjacent Channel Power: ≥ 60dB



Receiver

Reference Sensitivity: 0.35μV

Adjacent Channel Selectivity: ≥ 60dB

Intermodulation Rejection: ≥ 60dB

Spurious Response Rejection: ≥ 60dB

Rated Audio Power: ≥ 2W

Audio Response: +1` -3dB (0.3 - 2.55KHz)

Rated Audio Distortion: ≤ 5%

FM Hum & Noise: ≥ 35dB
