The Switch-Pros - 8 Switch Panel Power System is a premium switch panel power system designed to streamline the control of your vehicle's accessories. With Bluetooth connectivity, RGB backlighting, and a compact relay-free design, it’s the perfect solution for off-road, race, and utility vehicles needing a rugged, programmable, and easy-to-install electrical control system.
Features:
-
8 Button Switch Panel with 8 outputs
-
RGB backlighting for customizable illumination
-
Built-in Bluetooth module for wireless control via the free Switch-Pros App (iOS & Android)
-
Battery voltage readout displayed in the app for real-time monitoring
-
Orange LED switch indicators for clear visibility
-
LED input status indicators on the power module for easy troubleshooting
-
Preset dimming function with memory (adjustable from 100% to 10% brightness)
-
Master mode allows control of up to seven switches with a single press
-
On/Off or momentary function for versatile accessory control
-
Ignition or battery input options for flexible wiring setups
-
Flash or strobe mode with user-selectable strobe patterns and one-touch activation
-
Automatic power-up when the vehicle starts
-
Time delay off to control shutdown timing for accessories
-
Low voltage disconnect to prevent battery drain
-
Sleep mode for minimal power consumption when not in use
-
Two external trigger inputs that can activate up to four outputs each (Active Hi or Active Low)
-
Daisy chain capability to link up to three Switch-Pro switch panels to a single power module
-
IP67 waterproof rating for durability in extreme conditions
-
Compact, relay-free design for simplified installation
- Proudly made in the USA

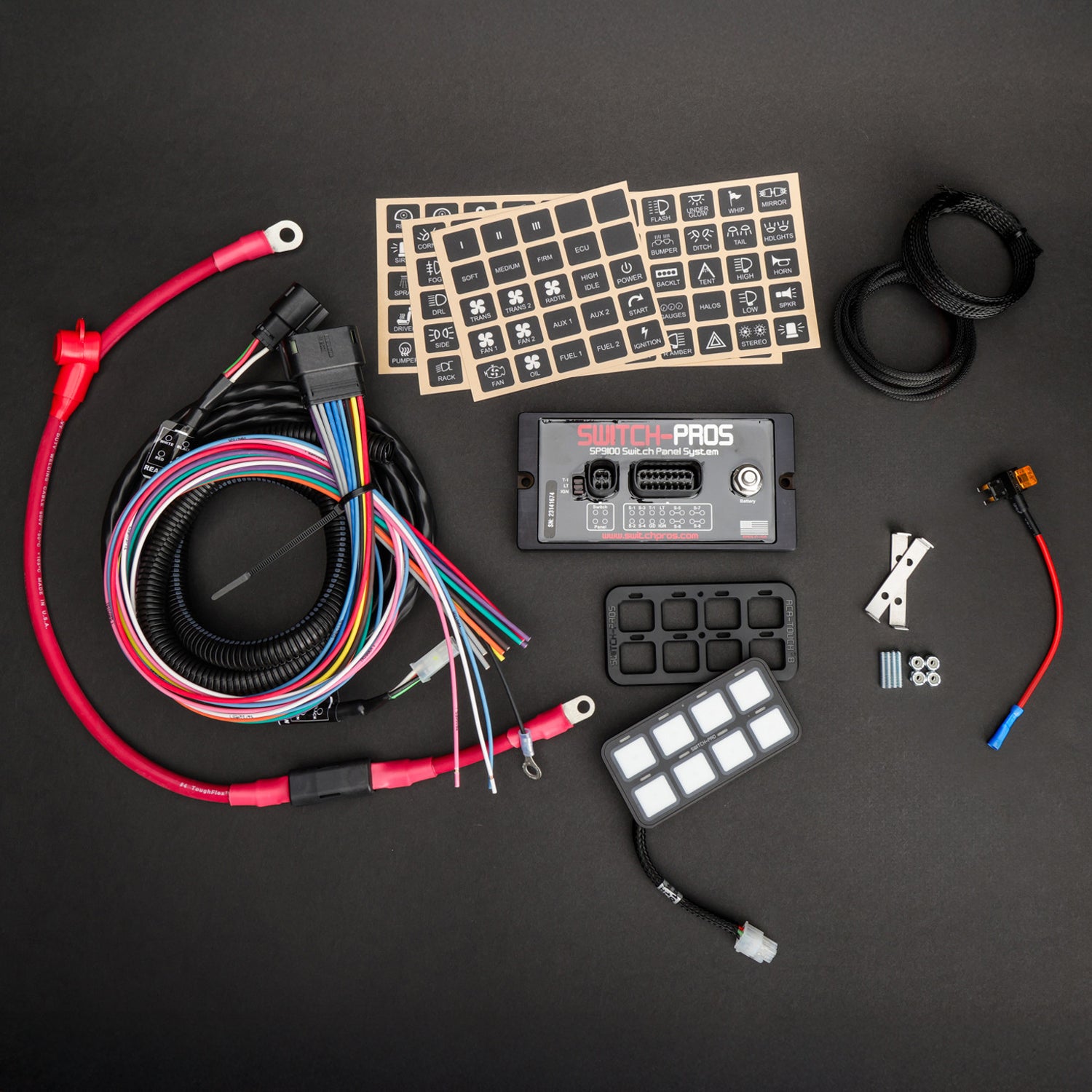

Includes:
-

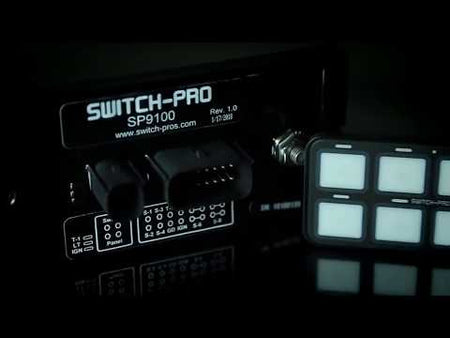

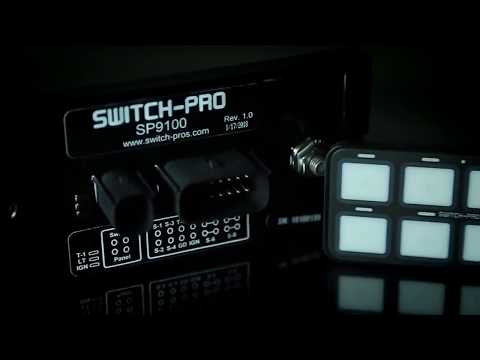

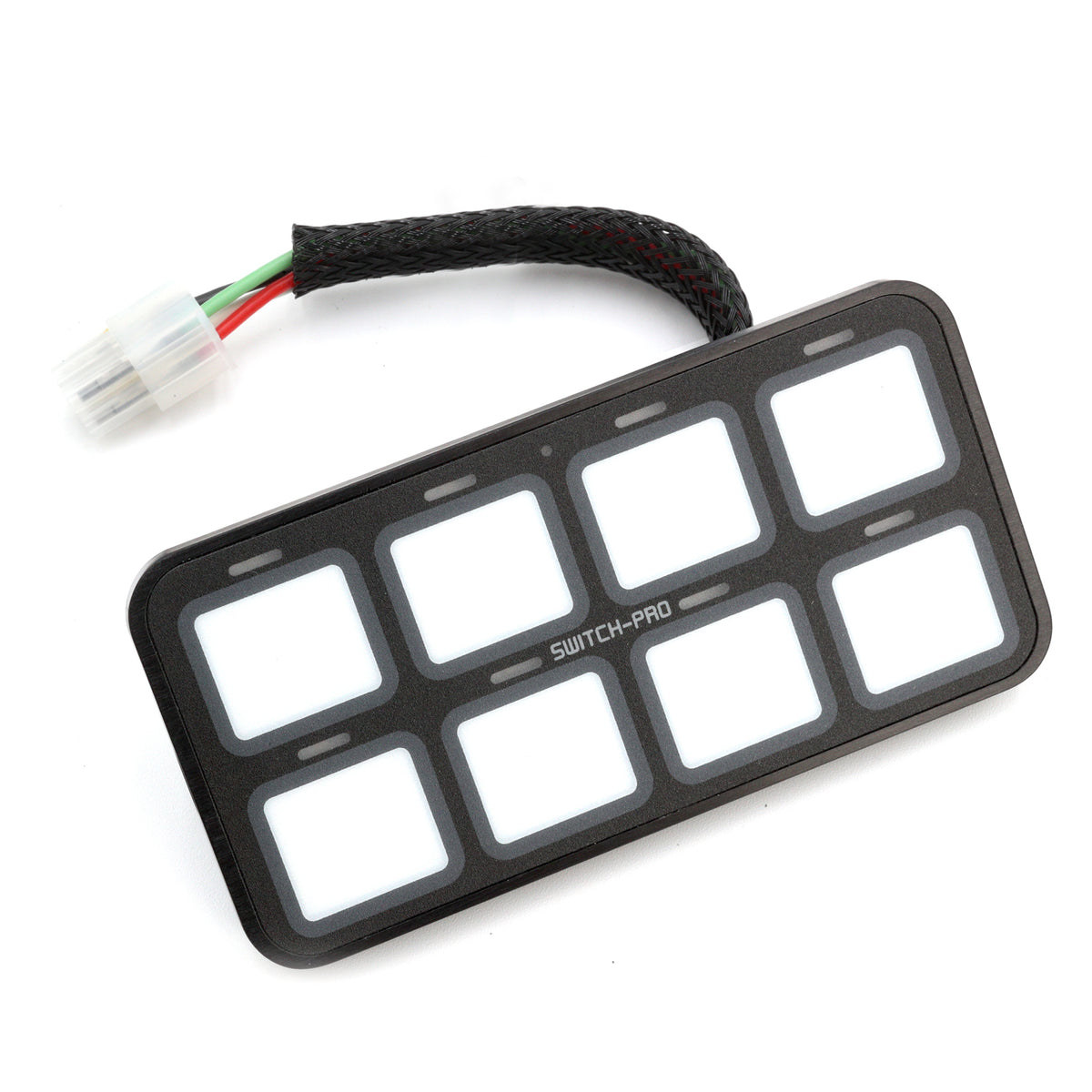

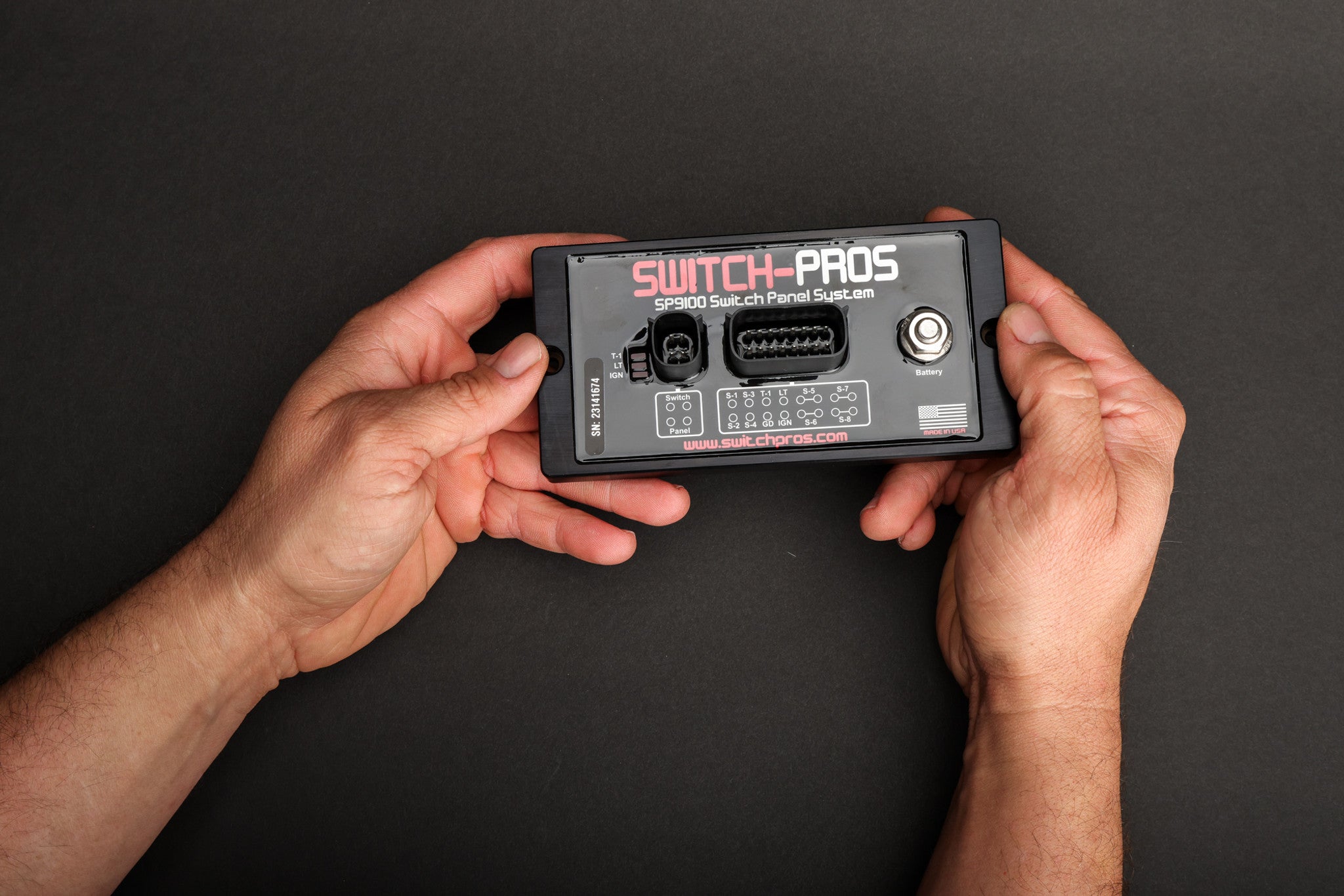

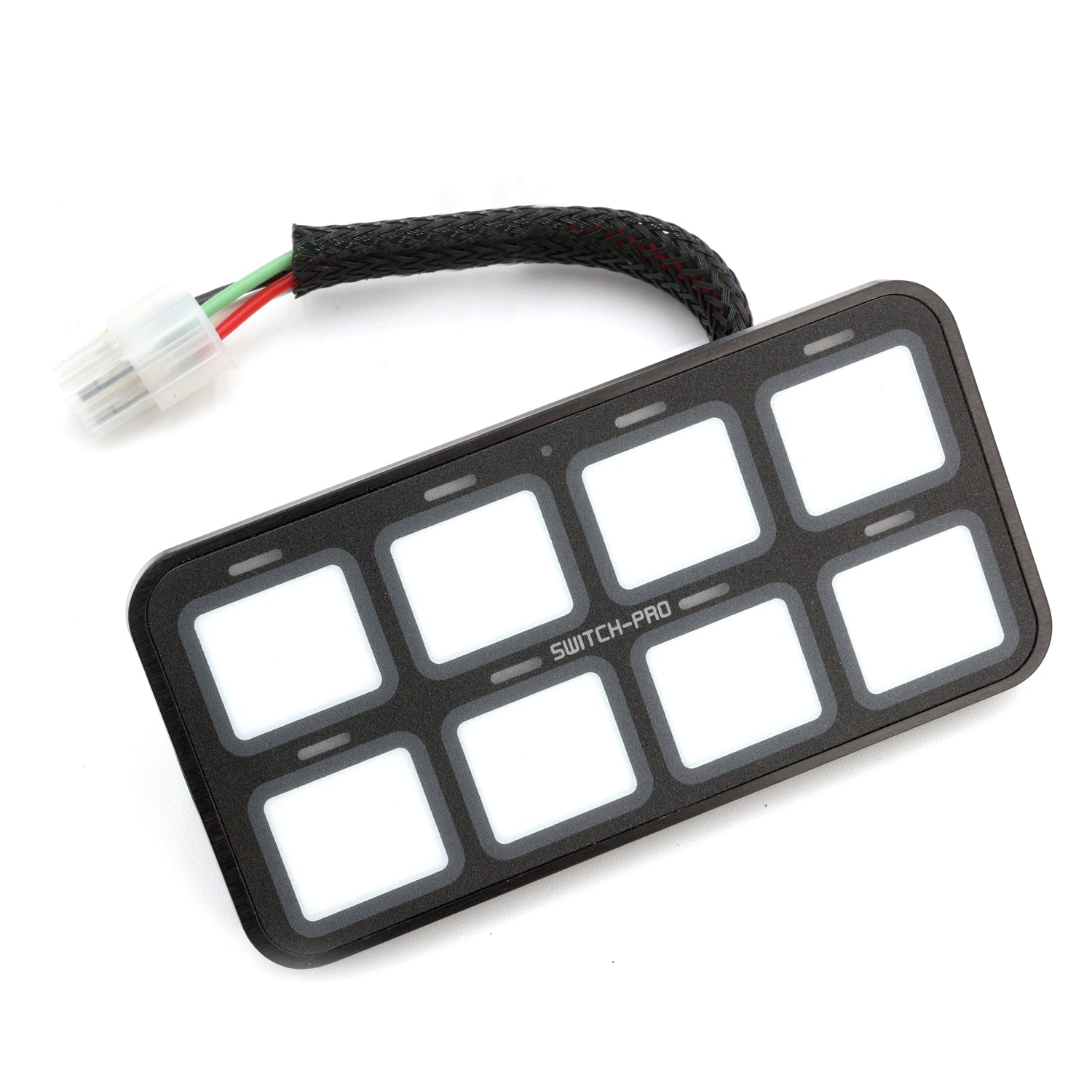

Switch Panel and Power Module for complete accessory control
-

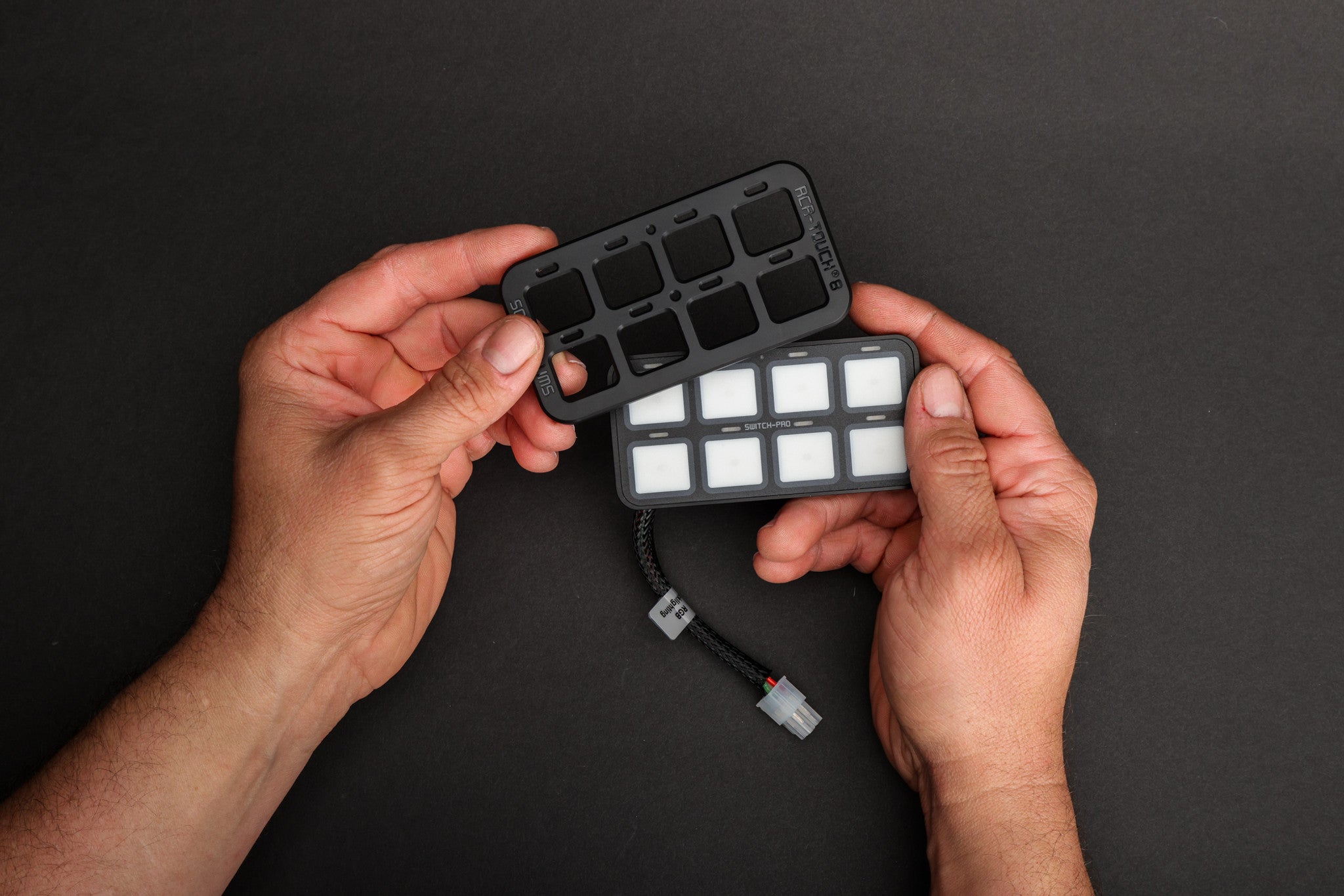

RCR-Touch® 8 Cover for enhanced switch selection, even with gloves (U.S. Patent No. US D922,969 S)
-
11’ communication cable between the switch panel and power module
-
Power cable with 125A inline fuse for secure power distribution
-

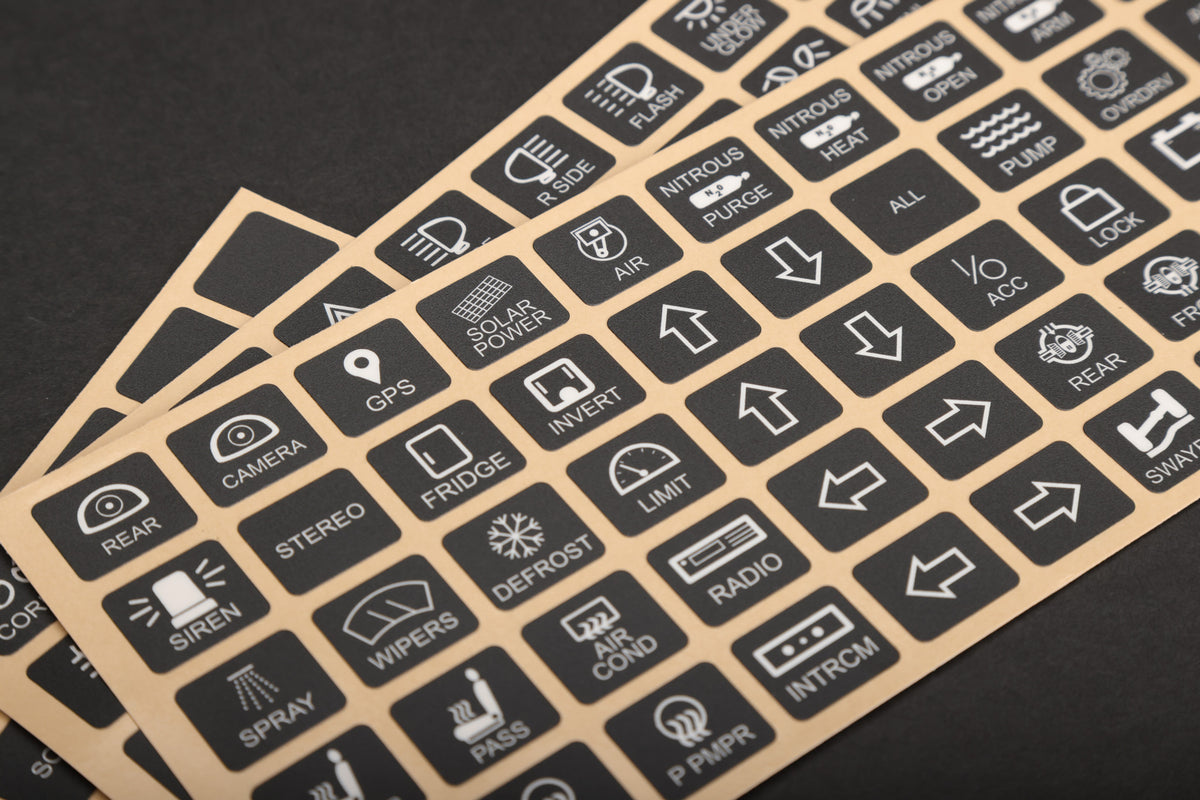

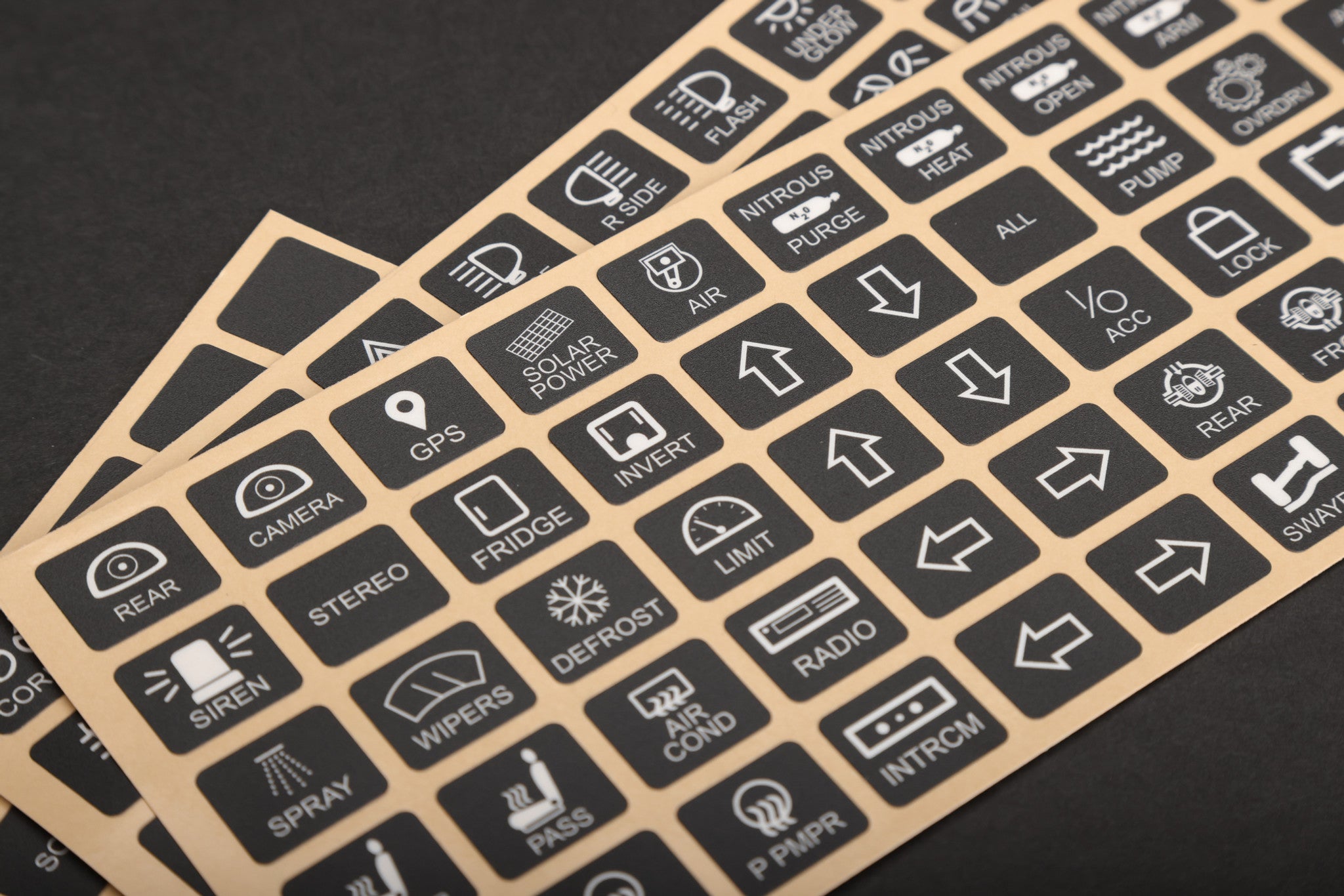

125 user-selectable legends (horizontal orientation) for customizable labeling
-
Installation brackets and hardware for secure mounting
-
16-pin color-coded output harness for streamlined wiring
-
Detailed installation guide for easy setup
Specifications:
-
125A total capacity with 8 configurable outputs
-
Output ratings: 4 outputs @ 35A, 4 outputs @ 20A
-
Adjustable overcurrent protection for each output
-
Switch panel dimensions: 4” L x 2” W x .375” H
-
Power module dimensions: 6” L x 3” W x .5” H (excluding connectors)
-
Operating temperature: -40°C to 125°C
The Switch-Pros SP9100 is the go-to choice for off-roaders, racers, and professionals seeking a powerful, user-friendly switch system with advanced features and rugged reliability.
